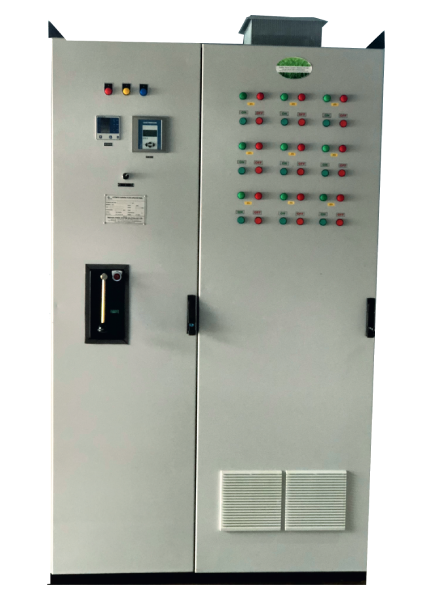

APFC (Automatic Power Factor Control)
Depending on the loads in operation, various levels of kVAR compensation are required to maintain proper
power factor. The APFC panel contains a multi-step relay which is connected to multiple capacitors and a
microprocessor controller which is programmed to control the switching operation of the relay. The voltage and current are measured on the feeder which is providing supply to the entire group of loads to determine the uncompensated power factor. Then, as per the ratings of the different capacitors used in the APFC and the
Features
*Maintains high Power Factor constantly
* High efficiency…
* In-built independent fuses
* Protection from excess power in the system.
* Prevents leading Power Factor in low load conditions
* Clearly marked buttons and indicators
* Minimizes harmonic current
* Easy to use
* Corrosion-resistant
* Long lasting
* Electrical insulation
* Protects electrical equipments
These APFC Panels are put to use in the following
* Windmills
* Monitoring current harmonics
* Process controllers
* Micro processors
* LT & HT factories
* Electrical installations
* Line voltage analysis
Direct Benefits
- Reduction in MD kVA
- Reduction in kWHr Consumption
- Reduction in kVAHr Charges
- Avoidance of PF Penalty
- Availing PF
Incentive
- Indirect Benefits
- Reduction/Avoidance of End Termination Darkening or Burn Outs
- Reduction/Avoidance of Motor winding Failures
- Improved System Performance due to Healthy Voltage
- Low Electric Break Downs/ Reduced Plant Down Time
